Custom assembly and weld fixtures
Hold every part where it belongs.
We manufacture custom fixtures that locate and hold parts during assembly or welding. Send your assembly geometry and production needs so we can review the fixture scope, access, and fit requirements.
Request a quote
Fixture example
Plan for repeatable locating and access.

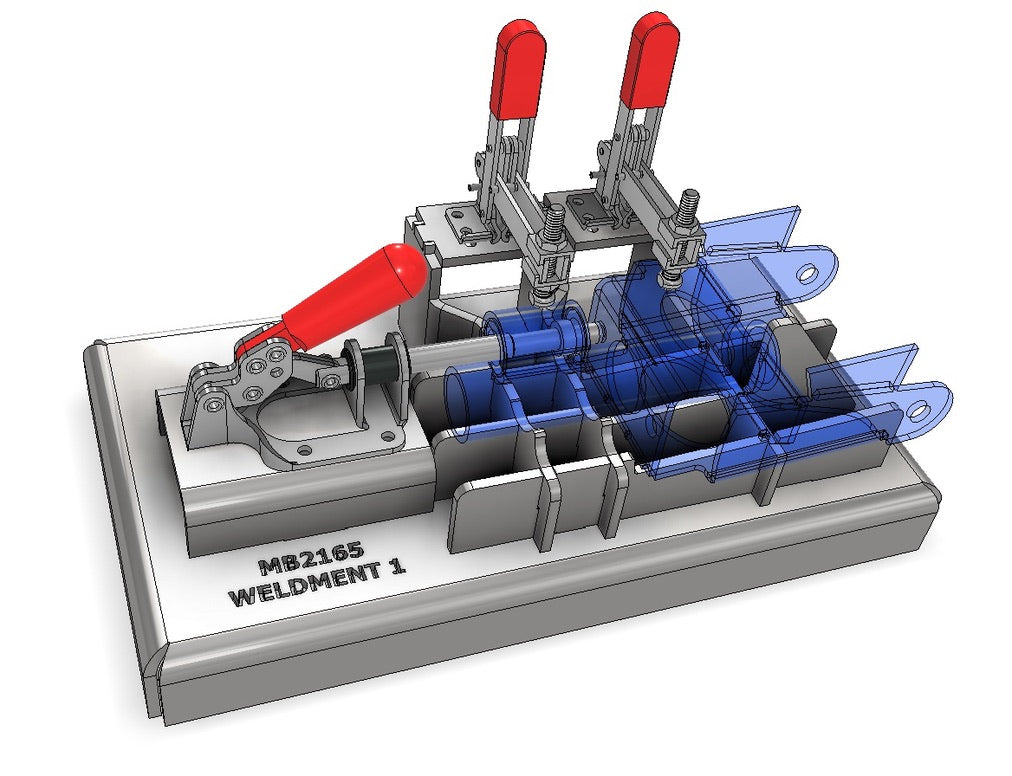

This 3D model shows how a fixture can position an assembly with supports and clamps while leaving access to the work. We will review your part geometry and production goals before defining the fixture scope.
Request a quoteFixture requirements
The part defines the fixture.
Useful fixture requirements start with how the assembly must locate, clamp, and be removed.
- Assembly geometry
- Send a STEP model and drawings of the components and finished assembly, including critical datums and fit points.
- Locating and clamping
- Identify the surfaces and features used to locate the parts, required access, and any clamp or handling preferences.
- How it will be used
- Tell us whether the fixture supports welding, assembly, inspection, or several steps, and describe how parts are loaded and removed.
- Production demand
- Include expected part volume, fixture quantity, workspace limits, and the date you need it in use.
A useful quote starts here
What to send for a fixture quote.
These details help us understand what the fixture needs to accomplish.
Start your quote request- Assembly STEP model and dimensioned drawings
- Critical locating points, datums, and fit requirements
- Weld or assembly access and handling needs
- Expected production volume and fixture quantity
Let’s put your next job in motion
Need a fixture built?
Send the assembly model and tell us how the fixture will be used. We will review the scope and quote the work.
